Find'n'Secure fleet management software supports Ibutton with relay that can be used to Authorizing the driver and protecting the vehicle from theft. To enable this feature on the software, Fleet owner need to enable it in tracker firmware configuration and software setting . Steps are as followed:


  1. Hardware Firmware configuration:


  • Enable the Authorized driving from features option

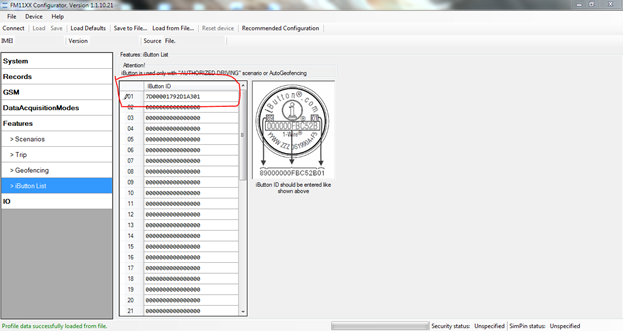

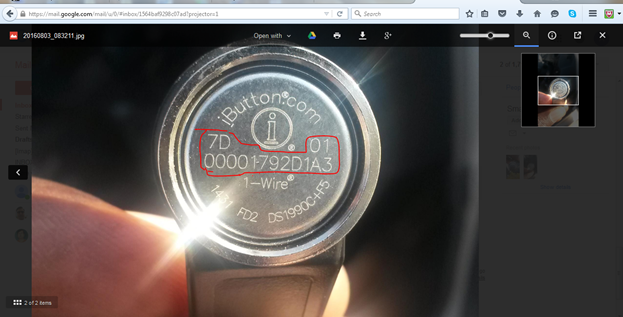

  • Now go to Ibutton list and add the Ibutton like this

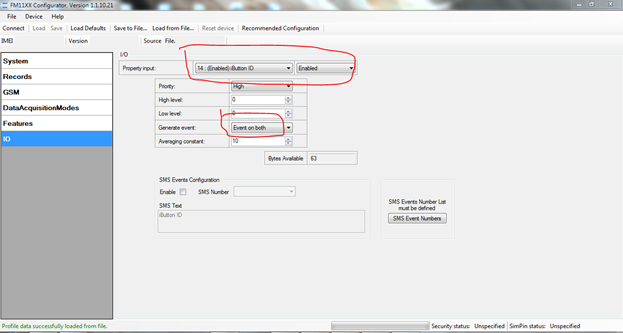

  • Go to I/ O option then Enable the Ibutton Id option


2. Wiring connections


Relay

86 PIN with digital O/P 2 wire of the device

85 PIN to +ve terminal of the vehicle's battery

Device Ignition wire (yellow)   with ignition wire of the vehicle

starter wire of vehicle have to split in two parts one part to be connected with PIN 87a other part with PIN 30


Ibutton


white wire of the ibutton with Green wire of device Pin8

2 brown/black wire with Ground wire of the vehicle(-ve termnial)


3.Software Admin Part

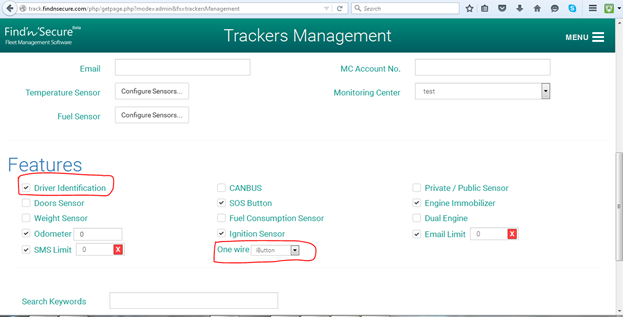

Go the Trackers Management from admin

Go the Trackers settings then select following options and save the settings



4.Now from Users Part


  • Driver Management

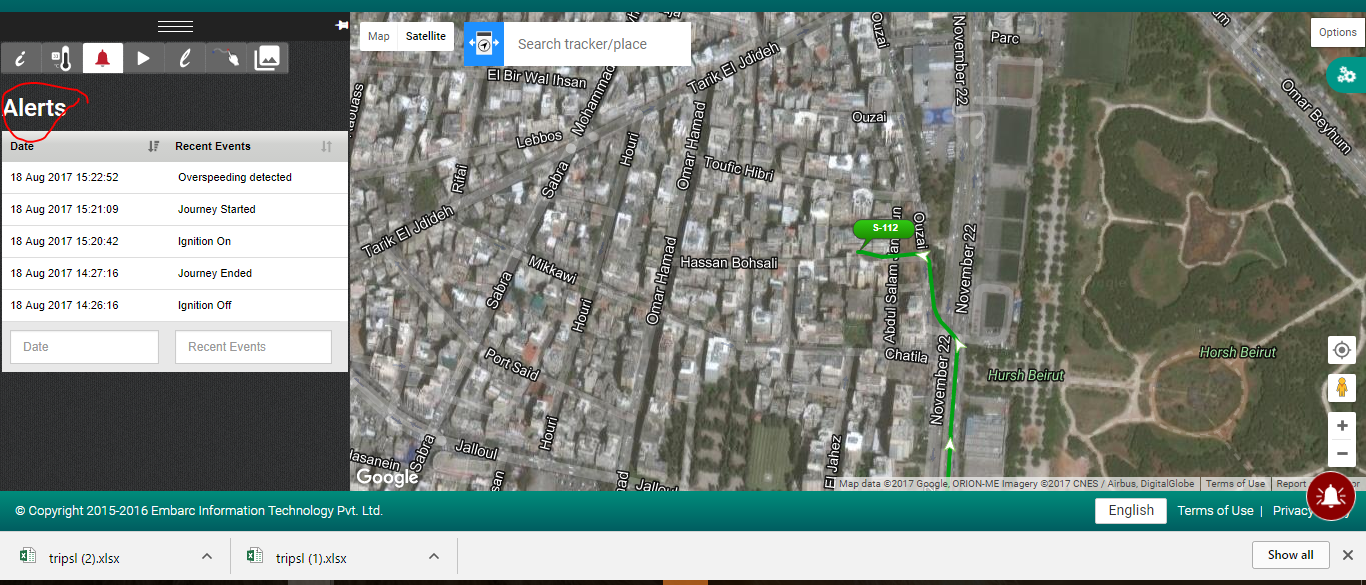

when you connect the ibutton key to ibutton reader you will see an alert in the LIVE window for that vehicle in which you have connected the Ibutton in Alerts Tab like TAG IN :76543983019

You need to add such number in the driver management In TAG ID option  while creating driver and fill other details also and assign it to the vehicle and save it
