Find'n'Secure fleet management software support to monitor temperature of the fleet containing dairy food or seafood. To enable this feature on the software, Fleet owner need to enable it in tracker firmware configuration and have to connect it to the tracking unit. Steps to enable temperature sensor are as followed:
1. Hardware Firmware configuration: Enable temperature sensor in IO module in hardware configurator-
2. Wiring connection of the sensor to the hardware unit: (Note: These are the wiring information of temperature sensor provided by Find'n'Secure . )
(a). For VT-62/VT-62+ : Red and Green wire of temperature sensor will be connected to the -ve wire of tracking unit and yellow wire of sensor to the green wire(pin-8) of the unit.
(b). For VT-60 : (i). Red wire of sensor to the blue wire of the hardware unit,
(ii). Green wire of sensor to the -ve wire of unit.
(iii). Yellow wire of sensor to the green wire(pin-8) of unit.
3. Configuration on Find'n'Secure tracking portal: (Note: This setting only can be done by the Admin user. )
To get the temperature sensor value in sensor tab of live view mode:

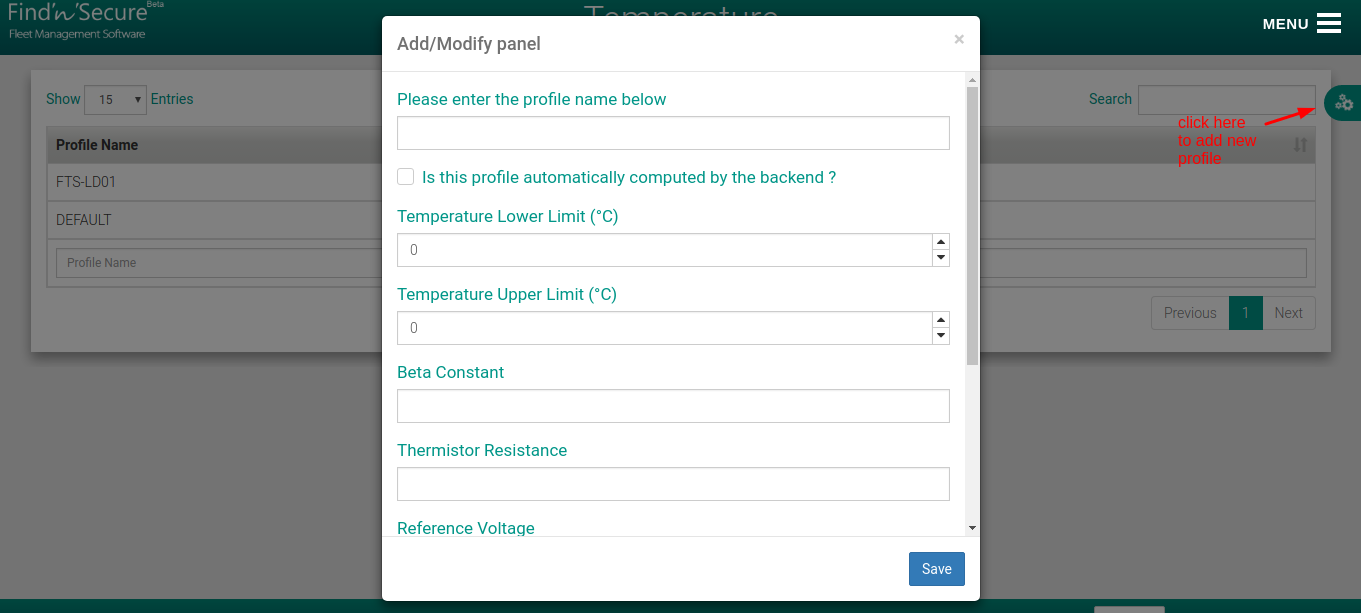

(a). User first have to create temperature profile using the Admin account. Open temperature module of the software, create profile and save it.

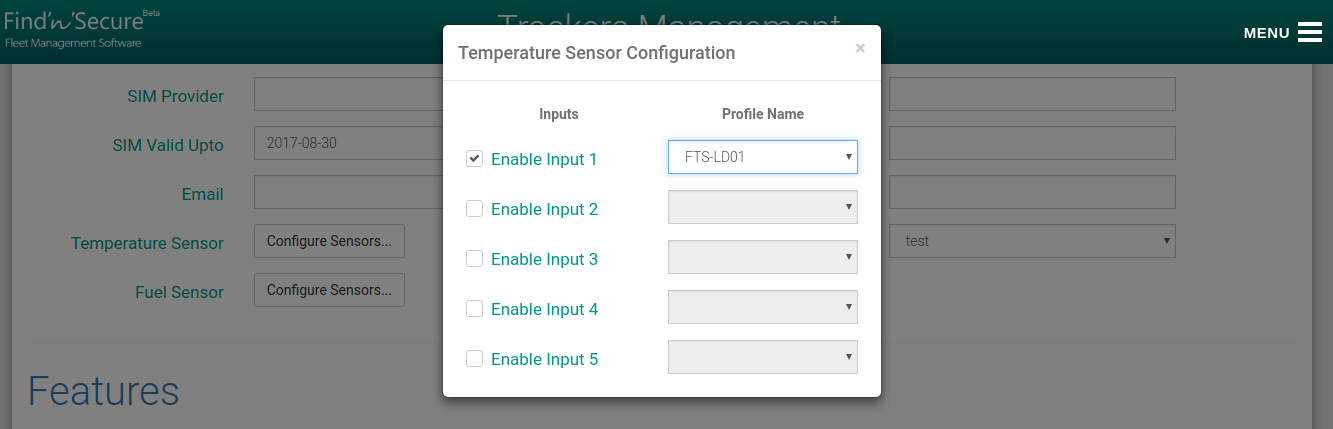

(b). Then user will have to enable temperature sensor in 'Tracker' module and assign created profile to the appropriate tracker.
after save the changes in tracker profile.

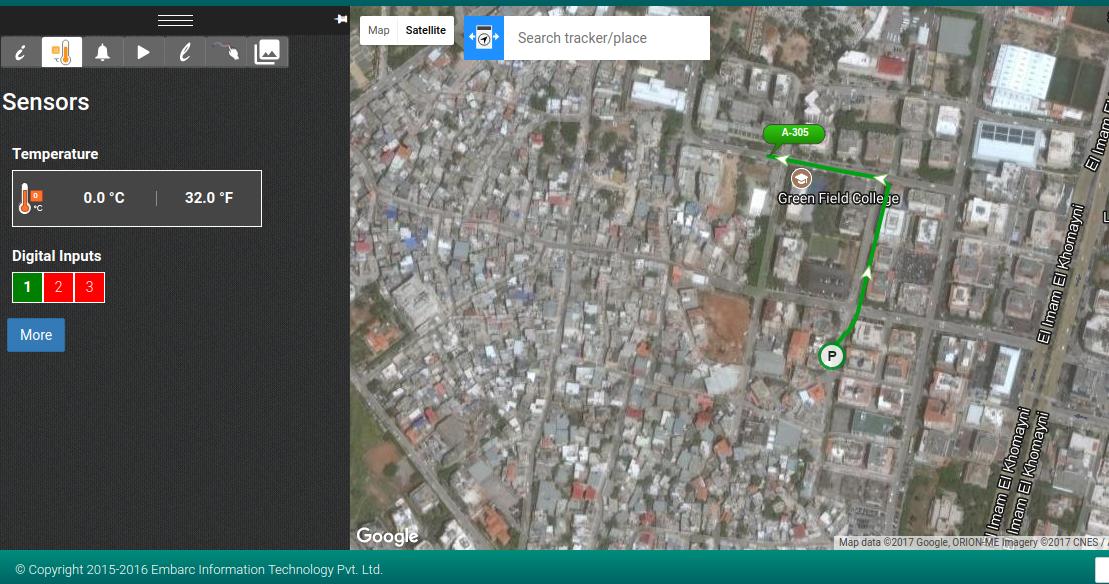

4. Monitor temperature value on the software: Go to the 'Live View' module on open sensor tab where user can see the temperature value.
Hope it is helpful!! :)
